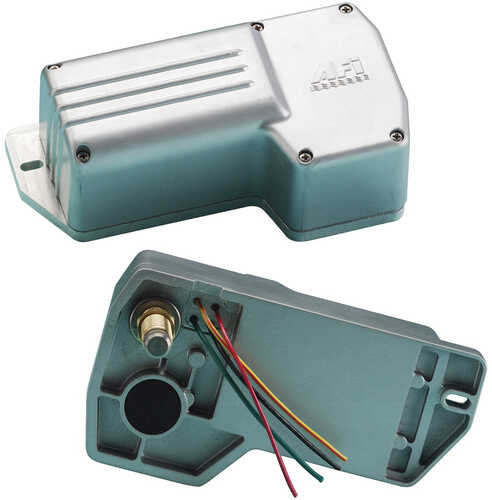

Wiper Motor 2.5 Series - 12V - 2.5" Shaft - 80° - Heavy-DutyThe 2.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 26" Deluxe arm and Deluxe blade combination or a 24" Premier arm and Premier blade combination.Features:Available in two shaft lengths: 1.5" and 2.5"Factory pre-set sweep angles of 80 degree or 110 degree, with easy adjustment to 45 degree or 60 degreeChrome plated solid brass knurled drive nut with brass and stainless steel drive shaftTwo speed motorSealed 6" wire leads, 16 AWGAdjustable right or left self parking0.625" diameter shaft (16 mm)Available in 12V and 24V modelsCoast to parkRF shielded circuitryRetail version includes 6 amp fuse and holder (operating switch not included)Measures approximately 7.875" L x 4.25" W x 3" DStall torque: 139 in-lbs (160 kgf/cm; 15.7 Nm)Stall current: 9.0-10.5 ampsNo load current: 1.0 -1.6 amps
