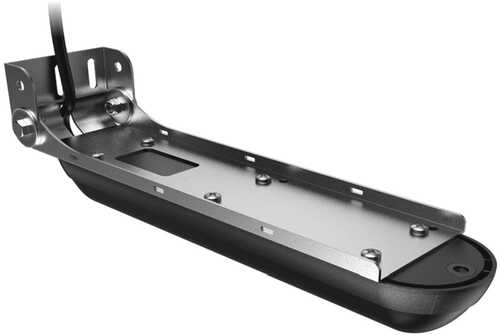

Active Imaging 2-in-1 TransducerActive Imaging TransducersActive Imaging is a new scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any rangeActive Imaging transducers accomplish this by better directing the SideScan beams which increases resolution and improves range performanceActive Imaging is available in two modelsThe Active Imaging stand alone transducer lets the user combine the new Active Imaging transducer with a separate CHIRP transducer for dual transducer installs.Active Imaging operates at 800kHz or 455kHz with maximum ranges of 150ft (800kHz) or 300ft (455kHz)Active imaging TechnologyActive Imaging utilizes the latest techniques in sonar signal generationActive Imaging transducers are constructed of a polymer that reacts to sound waves more closely to water. This ensures that no sonar signal is lost during transmit or receiveActive Imaging transducers include separate sonar elements for SideScan transmit and receive Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution). Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performanceKey Features:Active Imaging sonar offers no compromise high resolution detail to users800kHz operation covers many use cases and ranges.With 800kHz range and resolution capabilities users do not need to choose between seeing inHigh detail or seeing farHigh resolution IPS screens of NSS evo3 and HDS Live show the full image, allowing the user to see the entire underwater environmentActive Imaging transducers do not require any modules or extra hardware for use with next-generation displaysEnvironmentalOperating temperature: -15°C to +55°C (+5°F to +131°F)Storage temperature: -30°C to +70°C (-22°F to +158°F)PhysicalCable length: 7.6 m (25 ft)Mounting options: Transom, flush step, and jackplate mountingConnector: 9 pinTransducerOutput: SideScan imaging, DownScan imaging and temperatureFrequency: 455 kHz and 800 kHzMax depth: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150ft) side range at 800 kHzOperating speed: DownScan and SideScan: 9 knots (10 mph)
