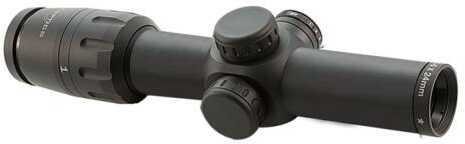

The SVS 1-6x optic is a true 1x optic with a 34mm tube, second focal plane 2MOA daylight visible red dot, MIL scale reticle, built in throw lever, and capped zeroing knobs for both windage and elevation with 2/10 MIL adjustments. The second focal plane red dot intensity can be adjusted via a 10-position rheostat, with the lower 3 settings being night vision compatible. The MIL Scale reticle features a set of simple crosshairs with 2 full MILs left and right, as well as 1, 2, 4, and 6 MILS below the center on the vertical axis.
Common Characteristics
Magnification: 1-6x
Diopter: +2 to -3
Parallax Adjustment: Fixed @ 100yds
Field of View @ 1x: 107.5' @ 100yds.
Field of View @ 6x: 18.65 ’ @ 100 yards
Eye Relief: 3.5”
Objective Lens Housing Diameter: 1.338? / 34mm
Tube Diameter: 1.33” / 34mm
Overall Length: 10.130 ”
Objective Lens Diameter: 0.94” / 24mm
Ocular Lens Diameter: 1.45” / 37mm
Weight: 22.2oz
Illumination: 2 MOA Red Dot
Battery: Lithium Coin, CR2032
Battery Runtime: Up to 500 Hours
Material: Aluminum, 6061-T6
Finish Color: Matte Black
SVS 1-6x Specifications
Elevation Knob: 2/10 MIL Zeroing Knobs
Windage Knob: 2/10 MIL Zeroing Knobs
Reticle: SVS MIL Scale, Second Focal Plane
Red Dot: 2 MOA, Second Focal Plane
